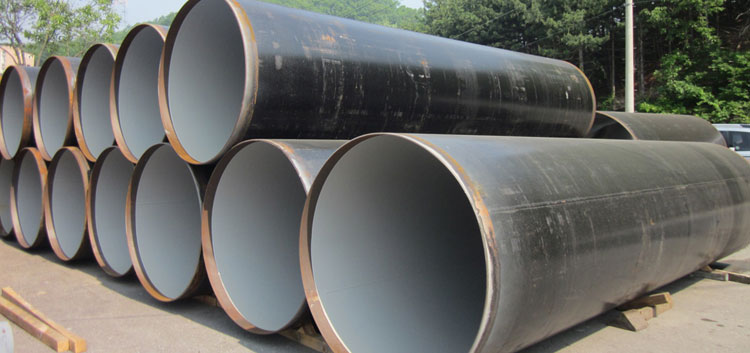

Carbon Steel Welded Pipes
Carbon Steel Welded Pipes
Hutzmann is one of the pioneers in supplying and manufacturing of ASTM A53 Grade B CS Pipes, where it is important to keep temperatures above 1750 Degree F to prevent the formation of sigma phase. Another consequence of the spindle decomposition of the ferrite phase in ASTM A53 GR. B Carbon Steel Seamless Pipes is loss of corrosion resistance. Because this reaction occurs more rapidly at 475 Degree C in ASME SA 53 GR. B Carbon Steel Welded Pipes, this process is also known as “475 Degree C embrittlement”.
ASTM A53 Gr.B Carbon Steel Pipes
ASTM A53 Gr.B Carbon Steel Pipes Specifications |
||
| Specifications | : | ASTM A53 ASME SA53 |
| Dimensions | : | ASTM, ASME and API |
| Size | : | 1/2” NB to 36” NB |
| Thickness | : | 3-12mm |
| Schedules | : | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Type | : | Seamless / ERW / Welded / Fabricated |
| Form | : | Round, Hydraulic Etc |
| Length | : | Min 3 Meters, Max18 Meters, or according to customer’s requirement |
| End | : | Plain End, Beveled End, Treaded |
ASTM A53 Gr.B Pipes Chemical Composition
| A53 Gr.B |
C | Mn | P | S | Cu | Ni | Cr | Mo | V |
| 0.3 | 1.2 | 0.05 | 0.045 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 |
ASTM A53 Gr.B Pipe Mechanical Properties
| Grade | Yield Strength | Tensile Strength |
| A53 Gr.B |
240 | 415 |
ASTM A333 Gr.6 Carbon Steel Pipes
ASTM A333 Gr.6 Carbon Steel Pipes Specifications |
||
| Specifications | : | ASTM A333 ASME SA333 |
| Dimensions | : | ASTM, ASME and API |
| Size | : | 1/2” NB to 36” NB |
| Thickness | : | 3-12mm |
| Schedules | : | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Type | : | Seamless / ERW / Welded / Fabricated |
| Form | : | Round, Hydraulic Etc |
| Length | : | Min 3 Meters, Max18 Meters, or according to customer’s requirement |
| End | : | Plain End, Beveled End, Treaded |
ASTM A333 Gr.6 Pipes Chemical Composition
| A333 Gr.6 |
C | Mn | P | S | Si | Ni |
| 0.3 | 0.29-1.06 | 0.025 | 0.025 | ≥0.10 | – |
ASTM A333 Gr.6 Pipe Mechanical Properties
| Grade | Yield strength, min, psi (MPa) | Tensile strength, min, psi (MPa) | Elongation (%) |
| A333 Gr.6 |
35 000 (240) | 60 000 (415) | 30 min |
Carbon Steel Welded Pipe Application Industries
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
